Preprocessor functions

ExecutePreprocessor

The pre-processor functions are executed before the calculation of the channels.

The execution of the Pre-processor before executing the calculation file runs automatically.

In the code, you can use the command ExecutePreprocessor to force execution of the Pre-processor

ExecutePreProcessor   ; Forcing Pre-Processor executing at respective point in code.

Important

Forcing Pre-processor execution is necessary if e.g. a SpecSheet entry was written in a previous group of the same calculation file is used later again

Include files

In the CalcTool there are several possibilities to include other files in a calculation.

It is possible to include the following types of files:

  • Parameter files (.HED).

  • Variable files (.Var)

  • Calculation files (.CAL/.CCF)

Attention

Variable files are included at the beginning of a calculation file!

Attention

Calculation files are included within groups!

Important

In chapter 3.3 an overview over different path-placeholders can be found which can replace … in the path calls like …\FileName.VAR

Parameter files

Only the measurement related parameter file (.HED), which are located in the respective measurement directory can be accessed from calculation files!

Important

For more information about parameter files (.HED) please see chapter 4.

Variable files

For including variable files (.VAR), the following call is valid:

{$V FileName.VAR}   ; Including variable file FileName.VAR
{$V …\FileName.VAR}   ; Including variable file FileName.VAR

Important

If there is no path defined at a VAR-File include (…), the VAR-File is searched inside Race-installation folder!

Important

For more information about VAR-file see 6.1.4.4.2.

Attention

The VAR-file include call must be placed at the beginning of a calculation file!

Attention

If more than one VAR-files are included at the beginning of a calculation file, only the first include call is considered!

Calculation files

Include calculation files are very suitable for outsourcing frequently used routines and thus making the calculation file clearer.

Since parameters and channels can also be passed to the include files, generally valid functions for several purposes can also be used as include files.

Include calls can also be linked to a condition.

File extension

Cryped as well as encrypted calculation files can be included.

{$I FileName.CAL}    ; Including encrypted calculation file from current event
{$I …\FileName.CAL}  ; Including encrypted calculation file from respective path
{$I FileName.CCF}    ; Including crypted calculation file from current event
{$I …\FileName.CCF}  ; Including crypted calculation file from respective path
  1. If no extension, e.g. …FileName, is available in the include call, first a CAL file is searched for in event directory

  2. If no CAL file could be found in respective directory, it is searched for a CCF with same name

  3. If no CCF is found in respective directory, an error message appears

Important

This approach applies to both unconditional and conditional inclusions!

Path definitions

Important

This approach applies to both crypted and encrypted calculation files

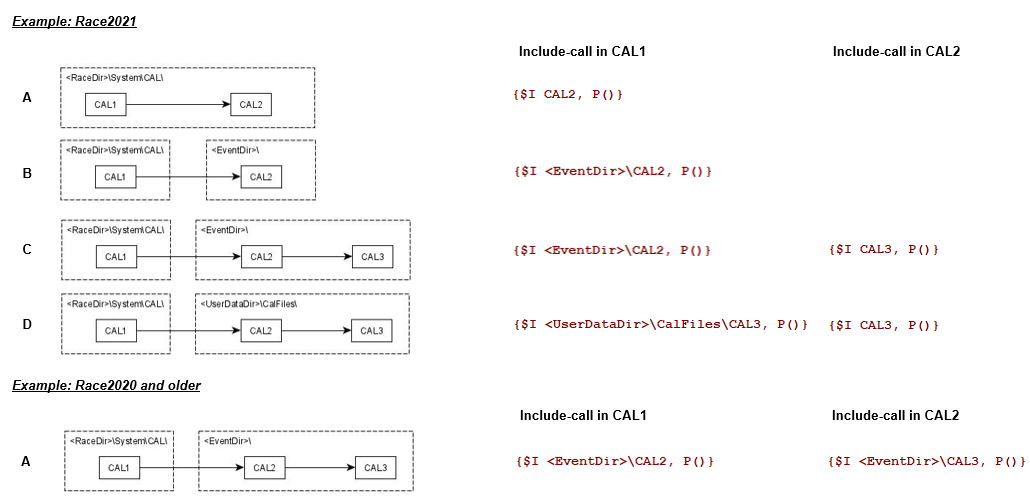

If there is no path defined at a calculation file include call, e.g. {$I FileName.CAL}, the calculation file to be included is searched for the in the directory, the calculation file with include call is located in!

If a calculation file from another directory must be included, the file-path must be defined at include call.

Only since Race2021 the path of third stage include call (CAL3 see following *Example: Race2021*) no longer needs to be defined separately, because the path will of CAL3 is traced back to the include call of CAL2.

Important

The advantage of this is that when moving CAL2 and CAL3 to another directory, only the include path of CAL2 in include call at CAL1 needs to be changed. (*Example: Race2021 C & D*)

In older Race-versions, the path of CAL3 must also be defined for the include call in CAL2, because if no path is defined for the include call in CAL2, the system will search in the directory of CAL1 for CAL3 (*Example: Race2020 and older versions A*).

Attention

Keep in mind that include-call of CAL3 in CAL2 must be changed if CAL2 and CAL3 are moved to another directory!

_images/IncludeCalls.png

Unconditional include

For including calculation files without any conditions, the following calls are valid:

Syntax

Meaning

{$I …\FileName.CAL}

Including encrypted calculation file

{$I …\FileName.CCF}

Including crypted calculation file

Conditional include

For including a calculation files only if one conditions is fulfilled, the following calls are valid:

Important

Conditional include commands are only executed if the respective condition is fulfilled!

Important

Conditional include is possible for crypted and encrypted calculation files!

The following conditional includes are possible:

{$IfExists(#CH) …\FileName.CAL, P(P1, P2, …)}

Only include if channel #CH available

{$IfNotExists(#CH) …\FileName.CAL, P(P1, P2, …)}

Only include if channel #CH not available

{$IfLaptimesExist …\FileName.CAL, P(P1, P2, …)}

Only include if laptimes exists

{$IfNotLaptimesExist …\FileName.CAL, P(P1, P2, …)}

Only include if laptimes exists

{$IfLicenceNameContains(‘Name’) …\FileName.CAL, P(P1, P2, …)}

Only include if Spec-Entry INFO_2D.LicenseName contains entry ‘Name’

{$IfNotLicenceNameContains(‘Name’) …\FileName.CAL, P(P1, P2, …)}

Only include if Spec-Entry INFO_2D.LicenseName contains entry ‘Name’

{$IfSpecValueContains(Group.Entry, ‘Value’) …\FileName.CAL, P(P1, P2, …)}

Only include if Spec-Entry Group.Entry not contains entry ‘Name’

{$IfNotSpecValueContains(Group.Entry, ‘Value’) …\FileName.CAL, P(P1, P2, …)}

Only include if Spec-Entry Group.Entry not contains ‘Value’

{$IfSpecIs(Group.Entry, ‘Value’) …\FileName.CAL, P(P1, P2, …)}

Only include if Spec-Entry Group.Entry is ‘Value’

{$IfNotSpecIs(Group.Entry, ‘Value’) …\FileName.CAL, P(P1, P2, …)}

Only include if Spec-Entry Group.Entry not is ‘Value’

{$IfSpecValueExists(Group.Entry) …\FileName.CAL, P(P1, P2, …)}

Only include if Spec-Entry Group.Entry exists

{$IfNotSpecValueExists(Group.Entry) …\FileName.CAL, P(P1, P2, …)}

Only include if Spec-Entry Group.Entry not exists

Parameter handover

To be able to call a CAL file several times with different parameters, the parameter handover of the include command is used

Important

Conditional and unconditional includes both also provide the possibility for parameter handover!

Important

Beside numbers, also names or SpecSheet placeholder can be used as handover parameter.

For including calculation files with parameter handover, the following calls are valid.

Syntax

Meaning

{$I …\FileName.CAL, P(p1, p2,…)}

Unconditional include of encrypted calculation file with parameter handover

{$IfExists(#CH) …\FileName.CAL, P(p1, p2,…)}

Conditional include of encrypted calculation file with parameter handover

{$I …\FileName.CCF, P(p1, p2,…)}

Unconditional include of crypted calculation file with parameter handover

{$IfExists(#CH) …\FileName.CCF, P(p1, p2,…)}

Conditional include of crypted calculation file with parameter handover

Important

In the included calculation file the link to the handover parameters of the include file is established via the calls @P1, @P2, @…

Important

Parameter-handover is also possible with all other conditions!

Example:

Include calls:

[FilterAcc]
{$I _Filter.CAL, P(Acc)}                    ; Unconditional Include: Call CAL-File "_Filter" and handing over one parameter "Acc"

[FilterGyro]
{$Ifexists(#Gyro_x_1) _Filter.CAL, P(Gyro)} ; Conditional Include: Call CAL-File "_Filter" only if channel "#Gyro_x_1" exists and handing over one parameter "Gyro"

Calculation file to be included: _Filter.CAL

[Filter_@P1]
@P1_x_1_F = F(#@P1_x_1, F(IIR(FilterSettings.FilterFreq Hz))) ; Filtering #@P1_x_1 (e.g Acc_x_1) with an IIR-Filter with filter frequency defined by SpecSheet entry
@P1_y_1_F = F(#@P1_y_1, F(IIR(FilterSettings.FilterFreq Hz))) ; Filtering #@P1_y_1 (e.g Acc_y_1) with an IIR-Filter with filter frequency defined by SpecSheet entry
@P1_z_1_F = F(#@P1_z_1, F(IIR(FilterSettings.FilterFreq Hz))) ; Filtering #@P1_z_1 (e.g Acc_z_1) with an IIR-Filter with filter frequency defined by SpecSheet entry

Created channels:

  • Acc_x_1_F

  • Acc_y_1_F

  • Acc_z_1_F

  • Gyro_x_1_F (only if channel Gyro_x_1 exists)

  • Gyro_y_1_F (only if channel Gyro_x_1 exists)

  • Gyro_z_1_F (only if channel Gyro_x_1 exists)

Conditional execution of CAL-file groups

In some cases, it is useful to execute a group in calculation file only if a certain channel or SpecSheet value exists (or if it doesn´t exist).

For this reason, CalcTool provides the conditional execution of calculation groups.

Important

It is possible to use more than one condition for a group, but the condition lines must be one after the other at the start of the group:

IfLaptimesExist

With this condition it is possible to calculate a single group only if the measurement contains lap times.

[MyCalc]            ; Start of group
IfLaptimesExists    ; Condition: This group is only executed if the measurement contains lap times.
                    ; Group calculations

IfNotLaptimesExist

This condition is the opposite of the one above. A single calculation group is calculated only if the measurement does not contain lap times.

[MyCalc]            ; Start of group
IfNotLaptimesExists ; Condition: This group is only executed if the measurement contains DOES NOT lap times.
                    ; Group calculations

IfExists

With this condition it is possible to calculate a single group only if a channel exists.

[MyCalc]            ; Start of group
IfExists(#CH)       ; Condition: This group is only executed if #CH exists.
                    ; Group calculations

IfNotExists

This condition is the opposite of the one above. A single calculation group is performed only if a certain channel doesn´t exist.

[MyCalc]            ; Start of group
IfNotExists(#CH)    ; Condition: This group is only executed if #CH DOES NOT exists.
                    ; Group calculations

IfOrgExists

With this condition it is possible to calculate a single group only if a respective originally recorded channel exists.

[CH]                ; Start of group
IfOrgExists(#CH)    ; Condition: This group is only executed if #CH exists as originally recorded channel.
                    ; Group calculations
NewResult =         ; Overwrite originally recorded channel CH

Attention

IfOrgExists will most likely be used in combination with NewResult (3.7) to check if an originally recorded channel is available. NewResult is only able to overwrite originally recorded channels with the group name [‘Ch’] but not CALC channels!

IfNotOrgExists

This condition is the opposite of the one above. A single calculation group is performed only if a respective originally recorded channel doesn´t exist.

[MyCalc]            ; Start of group
IfNotOrgExists(#CH) ; Condition: This group is only executed if #CH DOES NOT exists as originally recorded channel.
                    ; Group calculations
CH =                ; Create permanent channel with name CH

Attention

IfNotOrgExists will most likely be used in combination with creating new permanent channels (3.6) when no originally recorded channel is available.

Attention

Please see the following example why it is important to use ‘Ch’

Example IfOrgExists/IfNotOrgExists

Especially GPS channels Altitude and Course are at different 2D-GPS-Systems sometimes available as originally recorded channels or generated CALC channels.

To handle the different options in calculation files the IfOrgExists/IfNotOrgExists were created:

[Course]                    ; Name of group
IfOrgExists(#Course)        ; Condition: This group is only executed if #CH DOES NOT exists as originally recorded channel.
...                         ; Calculations
NewResult = noop(#C1)       ; Overwrite originally recorded channel #Course with temporary channel #C1

[Course_NotExists]          ; Name of group
IfNotOrgExists(#Course)     ; Condition: This group is only executed if #CH DOES NOT exists as originally recorded channel.
...                         ; Calculations
Course = noop(#C1)          ; Overwrite channel #Course with temporary channel #C1

IfSpecValueExists

With this condition it is possible to calculate a single group only if the SpecSheet of the measurement contains a certain entry.

[MyCalc]                            ; Start of group
IfSpecValueExists(Group.Entry)      ; Condition: This calculation is only done if the *SpecSheet* of the measurement contains group “Group” with the entry “Entry".
                                    ; Group calculations

IfNotSpecValueExists

This condition is the opposite of the one above. A single calculation group is calculated only if the SpecSheet of the measurement does not contain the entry “Entry” in the group “Group”.

[MyCalc]                            ; Start of group
IfNotSpecValueExists(Group.Entry)   ; Condition: This calculation is only done if the *SpecSheet* of the measurement DOES NOT contain group “Group” with the entry “Entry”.
                                    ; Group calculations

IfSpecValueContains

With this condition the user has possibility to calculate a single group only if the SpecSheet of the measurement contains a certain entry and if the entry contains a certain string (SearchStr).

[MyCalc]                                        ; Start of group
IfSpecValueContains(Group.Entry, SearchStr)     ; Condition: This calculation is only executed if the *SpecSheet* of the measurement contains group “Group” with the entry “Entry” and the entry contains the searched string.
                                                ; Group calculations

IfNotSpecValueContains

This condition is the opposite of the one above. A single calculation group is only calculated if the SpecSheet of the measurement does not contain the entry “Entry” in the group “Group” or if the entry exists but does not contain a certain string (SearchStr).

[MyCalc]                                        ; Start of group
IfNotSpecValueContains(Group.Entry, SearchStr)  ; Condition: This calculation is only executed if the *SpecSheet* of the measurement does not contain an entry “Entry” in the group “Group” or the entry exists but DOES NOT contain a certain searched string.
                                                ; Group calculations

IfLicenceNameContains

With this condition it is possible to calculate a single group only if the License Name of the software contains a certain string. Normally this is only used in encrypted CAL-files prepared by 2D for a specific customer.

[MyCalc]                                        ; Start of group
IfLicenceNameContains(LicenceName)              ; Condition: This calculation is only executed if the *License Name* of the software contains the searched string.
                                                ; Group calculations

IfNotLicenceNameContains

This condition is the opposite of the one above. A single calculation group is only calculated if the Licence Name of the software does not contain a certain string.

[MyCalc]                                        ; Start of group
IfNotLicenceNameContains(LicenceName)           ; This calculation is only executed if the *License Name* of the software DOES NOT contain the searched string.
                                                ; Group calculations

IfSpecValueIs

The calculation group is only calculated if a SpecSheet-entry is a certain value.

[MyCalc]                                        ; Start of group
IfSpecValueIs(Group.Entry, SearchValue)         ; This calculation is only executed if the *Group.Entry is the SearchValue
                                                ; Group calculations

IfNotSpecValueIs

The calculation group is only calculated if a SpecSheet-entry is not a certain value.

[MyCalc]                                        ; Start of group
IfNotSpecValueIs(Group.Entry, SearchValue)      ; This calculation is only executed if the *Group.Entry is NOT the SearchValue
                                                ; Group calculations

Substitution of place holders

In CalcTool differnt placeholders can be used.

Important

A place holder always starts with the “@” character

The following for four kinds of place holders can be used for substitution:

Important

When executing a CAL file, the Preprocessor replaces all found special character with the respective parameters/channels

Special channels

_images/SpecialChannels.png

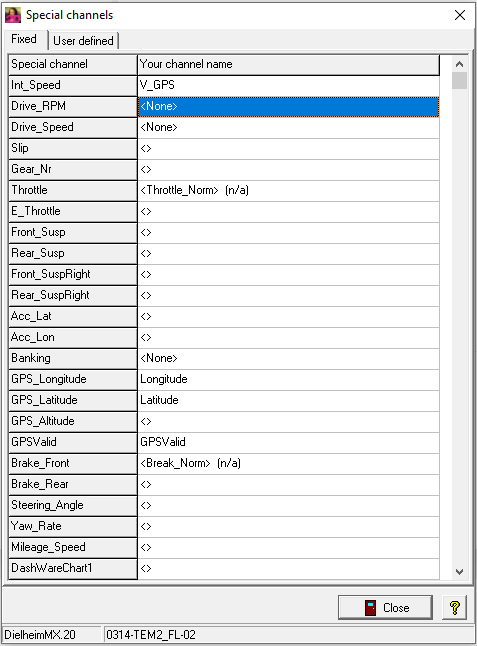

Special channels selection

In the Analyzer, special channels can be defined.

The advantage is that flexibility is increased when working with measurements where different channel names have been assigned to channels with the same purpose. A calculation file with fixed channel names could only be applied to certain measurements!

With the special channels this problem is solved because the respective special channels inside the calculation files are replaced by the channels linked in the adjoining list by the Preprocessor.

In the Analyzer, the adjacent Special channels list can be opened under the tab Settings.

Important

Also <SHIFT> + <s> can be used.

In this list the user can define the special channels for the measurement currently selected in the Analyzer. In addition to defined special channels, the user can also assign his own special channels.

Important

The list can also be edited in the Event.ini via text editor

Important

In Tab User defined, own special channels can be defined!

There are two possibilities to select at special channels list:

Option 1

When in current event no channel suits the respective special channel this option can be chosen.

_images/SpecialChannels_None.png

No channel can be linked to respective special channel

Important

Conditional execution leads to result FALSE! When a special channel is used in calculation file, and this option is used, the CalcTool will bring up no error, that no channel is selected at the respective special channel.

Important

Option 1 is selected by the user when no channel can be linked to the respective special channel.

Option 2

When a channel suits the respective special channel then it can be linked here.

_images/SpecialChannels_Selected.png

Channel linked to respective special channel

Important

Conditional execution leads to result TRUE!

Important

This option is selected by the user when channel can be linked to the respective special channel.

Option 3 - Selected channel not available

If a channel is selected, but currently not present in measurement, the special channel is automatically marked with the following symbol:

_images/SpecialChannels_NA.png

Selected channel is not available in current measurement

Important

Conditional execution leads to result FALSE!

Attention

This option can not be chosen by user!

Option 4 - Default setting

When a special channel is used in calculation file, and this option is used, the CalcTool will bring up an error, that no channel is selected at the respective special channel.

_images/SpecialChannels_Empty.png

Default setting when no channel is selected

Important

Conditional execution leads to an CalcTool error!

Attention

This option can not be chosen by user!

Example:

_images/SpecialChannels_FrontSusp.png

Special channel Front_Susp set to channel #Sus_F

Cal-File example:

FrontSusp_F = F(@Front_susp, F(L_PHAMM3hz77))   ; Special Channel @Front\_Susp is called in CAL-file
_images/SpecialChannels_PreProc.png

Preprocessor replaces Special channel @Front_Susp with linked channel #SUS_F

Frequently used special channels with description

Special channel

Description

Int_Speed

Speed channel used for integration of speed

Drive_RPM

Engine RPM

Drive_Speed

Engine speed (for gear calculation when no Gear_Nr)

Slip

Slip rear wheel

Gear_Nr

Gear number

Throttle

Throttle-grip signal

Throttle_E

Throttle butterfly position (drive by wire)

Front_Susp

Signal of front suspension (Cars: front left)

Rear_Susp

Signal of rear suspension (Cars: rear left)

Front_SuspRight

Signal of front suspension (Cars: front right)

Rear_SuspRight

Signal of rear suspension (Cars: rear right)

Acc_Lat

Lateral acceleration

Acc_Lon

Longitudinal acceleration

Banking

Banking of motorcycle

GPS_Longitude

Longitudinal position

GPS_Latitude

Latitudinal position

GPS_Altitude

Altitude

GPSValid

Valid GPS-Signal

Brake_Front

Pressure front brake

Brake_Rear

Pressure rear brake

Steering_Angle

Position signal of steering wheel

Yaw_Rate

Yaw-Rate of vehicle

Mileage_Speed

Speed channel used for determining the mileage

Predefined constants

The following constants can be used in calculation files:

Constant

Description

@PI

3.145…

@2PI

6.283…

@PI/2

1.571…

@E

2.71828 (Euler constant)

@G

9.80665 (Gravity constant)

@LN2

Natural logarithm of 2

@RAD2DEG

180/PI constant to calculate radiant to degrees

@DEG2RAD

PI/180 constant to calculate degrees to radiant

Others

Description

@MainSamplingRate

Mainsamplingrate of measurement

SpecSheet variables

How to use SpecSheet-Values as constants click here!

Variables

In CalcTool it is also possible to use global and local variables.

Attention

Either global or local variables can be used!

Local variables

Local variables are defined inside a calculation file in a group called [Variables].

Important

Local Variables can only be used inside respective calculation file!

This group is located before each other calculation groups in the file.

Beside values also channel names can be used as constant (e.g., when input channels are defined via Variables)!

Syntax

Meaning

[Variables]

Start of group

Variable1=815

Defining Variable 1

Variable2=#Test

Defining Variable 2

Important

The call of the variables in the following code is again done via the character “@”

Example:

c1 = *(#c1 , @Variable1)    ; Using @Variable1 for calculation --> #C1 * 815
c2 = *(#c2 , @Variable2)    ; Using @Variable2 for calculation --> #C1 * #Test

Global variables

Global variables must be defined in standalone VAR files.

This VAR file can be created with a text editor.

Important

Global Variables can be called from every calculation file!

Within this file the variable definition is done in the same way as for local variables via the group [Variables].

Syntax

Meaning

{$V …\Filename.VAR}

Include VAR-file

Attention

The Filename must contain the full path information!

Attention

The created VAR-file must first be included before the variables can be used in the actual calculation groups!

Attention

A VAR-file always contains only on group [Variables]

Attention

The VAR-file entries can be accessed in CAL-file by using @

Important

For the path of file, placeholders can be used (see 3.3)!

Important

Another predefined filename placeholder could be used only at global variables to load a variable file depending on the name of the current logger: <LoggerName> will be replaced by the name of the logger with which the measurement was recorded {$V …<LoggerName>.VAR}

Example: Two-stage placeholder replacement

How to recalculate the speed channel of a bike if the circumference of the tire was not set correctly before the measurement.

In the following example the following features are used togehter:

  • SpecSheet Value

  • Global variables

  • Creating new channel

  • Overwrite originally recorded channel

SpecSheet entry:

[Tire]

Front=Soft05

Tires.VAR:

[Variables]

Soft05 = 1885

Hard05 = 1885

Another = 1885

M4124C = 1887

DefaultCircumference=1890

{$V <EventDir>\Tires.VAR}                   ; Include Tires.VAR from Event directory

[SpeedRecalc]                                   ; Defining group name
C1      =/(#VFront, @DefaultCircumference)  ; Global Variable: @DefaultCircumference” is replaced by Tires.VAR-Value 1890 --> Division of #V_Front and 1890
C2      =*(#C1, @Tire.Front)                    ; SpecSheet Variable: @Tire.Front --> @Soft05 --> 1885
Result  = WORD(#C2)                         ; Creating new channel #SpeedRecalc defined by name of group in word-format

[VFront]                                    ; Defining group name
IfExists(#SpeedRecalc)                          ; Execute group [VFront] only if channel #SpeedRecalc exists
NewResult= Word(#SpeedRecalc, 0, 500)           ; Convert the recalculated speed channel to word using the borders 0 and 500 km/h
                                            ; If the keyword “NewResult” is used, the calculated channel will replace an originally recorded channel.

Two-stage placeholder replacement:

_images/CalcTool_Variables.png

Preprocessor protocol

The PreProcessor first replaces SpecSheet-Placeholder Tire.Front by Soft05.

Therefore, the placeholder @Soft05 is created which is then also converted by the Preprocessor to the value 1885.

Channel properties

In some cases, it is useful to use channel properties like sampling rate for calculation. These properties are replaced by their corresponding values before the calculation is started.

CalcTool allows to use the following channel properties:

Syntax

Meaning

#CH.Rate

Sampling rate of the channel (i.e. 100 for a channel sampled with 100 Hz)

#CH.DT

Sampling time of the channel (i.e. 0.01 for a 100 Hz channel)

#CH.P1

First of the three parameters of channel. Meaning depends on channel type

#CH.P2

Second of the three parameters of channel. Meaning depends on channel type

#CH.P3

Third of the three parameters of channel. Meaning depends on channel type

Attention

Parameters P1, P2 and P3 are only for 2D-internal use!

Example:

C1 = const(100, #V_Sat.Rate)
  • Value: Set value 100 of constant

  • Rate: Defines smapling rate to sampling channel rate as channel #V_Sat

Mileage

The 2D software structure makes it possible to record and document in the respective SpecSheet which mileage in kilometres various components have completed on the vehicle.

Important

This functionality can be used for planning the maintenance and replacement intervals of components!

Addtional manual

For more information about Mileage click here!

Format of numeric parameters

Some functions of CalcTool require one or more numbers as parameter.

There are three different possibilities to write a numeric parameter:

Data type

Description

Decimal

The number is written using the usual syntax, i.e. 350 or 17.5.

The decimal separator is independent of your computer’s language settings. Always use a point as decimal separator since the colon is used as parameter separator.

Hexadecimal

This notation starts with “0x” or “0h” and is followed by hexadecimal digits (0…F); i.e. 0xFF or 0hFF for the decimal value of 255. Only integer numbers can be written in this notation

Binary

This notation starts with “0b” and is followed by binary digits (0 and 1) i.e. 0b11111111 for the decimal value of 255. Only integer numbers can be written in this notation.

User interaction

To make calculation files more flexible, CalcTool provides two functions to enable the user to enter data.

Important

Commands are executed by the Preprocessor and thus values can be entered by user before complete calculation is executed!

Entering a channel name

This function opens a dialog to ask the user for the name of a channel to use in further calculation. The user may choose from a list of channels available in the specific measurement.

C1=EnterChannel(‘Text shown in dialog’)  ; Opens a dialog to ask the user for a channel name. The text in the parameter is shown in the dialog.
  • ‘Text shown in dialog’: The text in the parameter is shown in the dialog

_images/UserInteraction_ChannelName.png

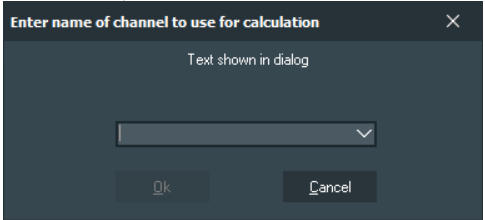

User interaction - channel name

C1=EnterChannel(‘Text shown in dialog’, #CH)  ; Opens a dialog to ask the user for a channel name with preselected channel. The text in the parameter is shown in the dialog.
  • ‘Text shown in dialog’: The text in the parameter is shown in the dialog

  • #CH: Selected channel is preselected in user interaction dropdown menu

_images/UserInteraction_ChannelNamePre.png

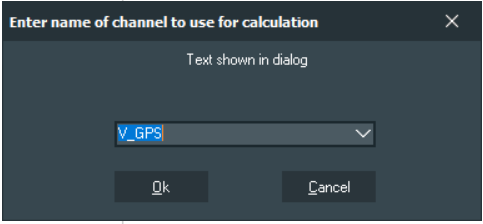

User interaction - channel name with preselected channel #V_Sat

Example:

The user is queried at execution of respective CAL-file to select a Video_File_Index-Channel for Dashware-export. #VideoFile_Index_1 is preselected.

[Dialog_Camera]
Camera = EnterChannel(Select camera for Dashware, #Video_file_Index)

Important

The created channel (e.g. Camera) can be used like any other channel in following calculations

Attention

When the user cancels the dialog, the calculation will stop at this line. Channels which were calculated in lines before will be stored, lines and groups after this line will be ignored.

Entering a numeric value

This function opens a dialog asking the user to enter a numeric value to use in further calculation

C1=EnterValue(‘Text shown in dialog’)  ; Opens a dialog to ask the user for a channel value. The text in the parameter is shown in the dialog.
  • ‘Text shown in dialog’: The text in the parameter is shown in the dialog

_images/UserInteraction_ChannelValue.png

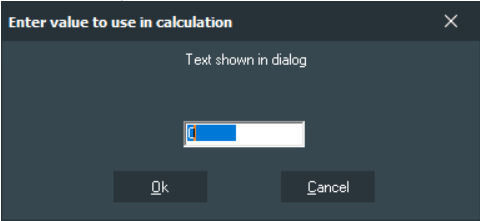

User interaction - channel value - “0” is default value

C1=EnterValue(‘Text shown in dialog’, Value)  ; Opens a dialog to ask the user for a channel value with preselected value. The text in the parameter is shown in the dialog.
  • ‘Text shown in dialog’: The text in the parameter is shown in the dialog

  • ‘Value: Preselected value

_images/UserInteraction_ChannelValuePre.png

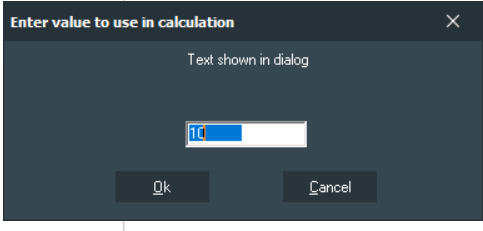

User interaction - channel value with preselected value

Example:

The user is queried to select, which video should be used for Dashware-export. Value 1 is preselected.

[Dialog_Video]
C0    = EnterChannel(Select video for Dashware, 1)
Video = Const(@C0, #Video_file_Index.Rate)

Important

The dialog shows the text parameter of the function. The entered value is stored in a constant with the name which is given on the left side of the “=”.

Important

The constant must be called in the following calculations with character “@” (e.g. @C0)

Attention

When the user cancels the dialog without entering a value, the calculation will stop at this line. Channels which were calculated in lines before will be stored, lines and groups after this line will be ignored
