Marker

When doing left mouse click in moving window with activated measurement mode, a marker can be set.

By again doing a left mouse click in moving window, a second marker can be set.

Attention

To remove markers press <ESC> to leave measurement mode.

Quick MES mode

When two markers are set in moving window, at top bar of moving window the software shows some quick measurement values from between the markers of currently in measured-values window selected channel.

_images/QuickMesMode.png

Measured-values window with only activated channels

_images/QuickMesMode_Detail.png

Detailed screenshot of Quick MES mode of channel #V_GPS

  • dt: Time between set markers

  • ds: Distance between set markers

  • d: Difference between channel value from second to first marker of selected channel

  • avg: Average value of selected channel between set markers

  • min & max: Minimum and maximum value of selected channel between set markers

  • d/dt: Derivative of selected channel between set markers

Attention

Quick MES mode is only possible for channel in moving window and not for channels in areas!

User defined marker

User defiend markers are used to mark points in respective measurement for having a look later or showing to collegues or team mates.

Important

At User defined marker always a comment must be added.

Important

Also when copying measurement the User defined marker will still be available.

_images/UDM_Set.png

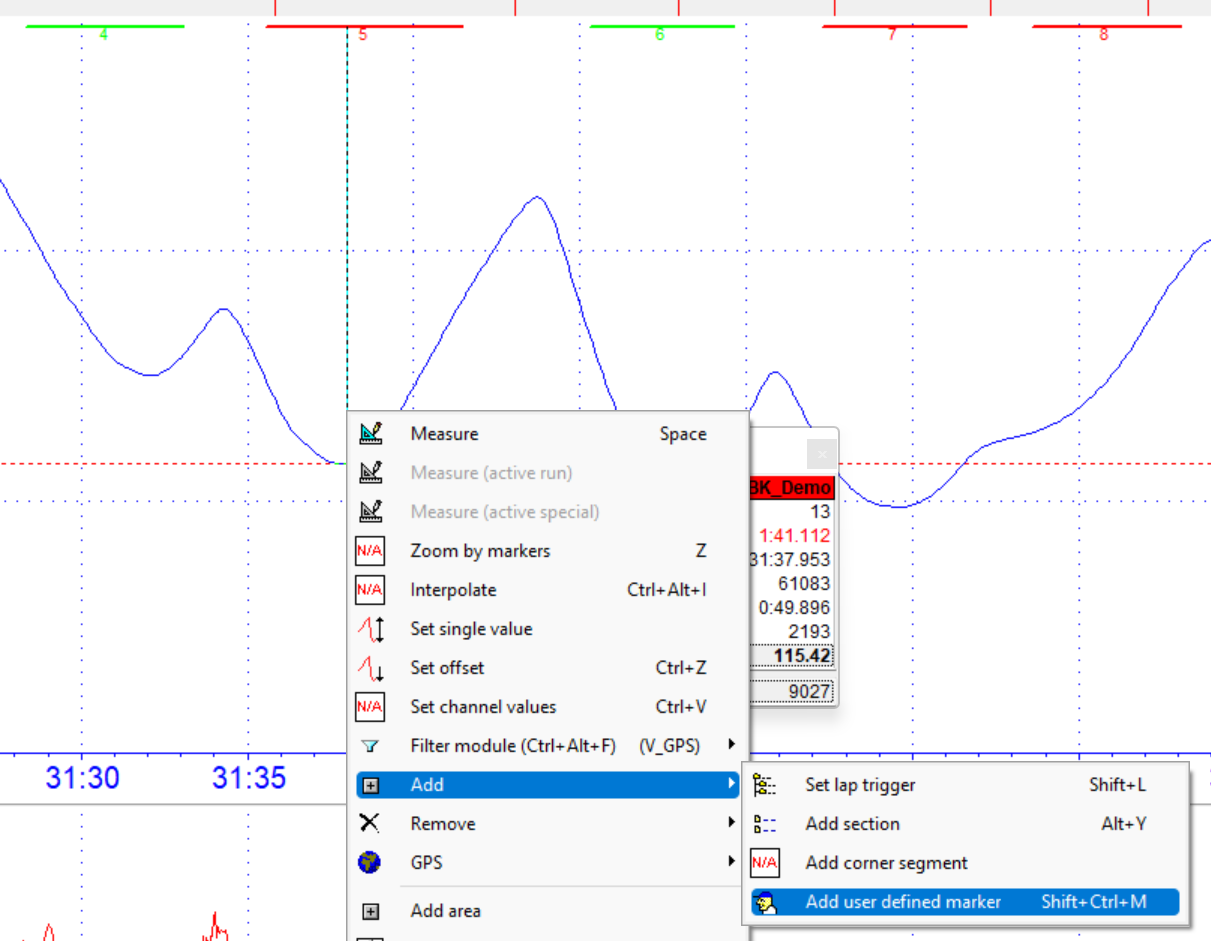

Add user defined marker at current cursor position

_images/UDM.png

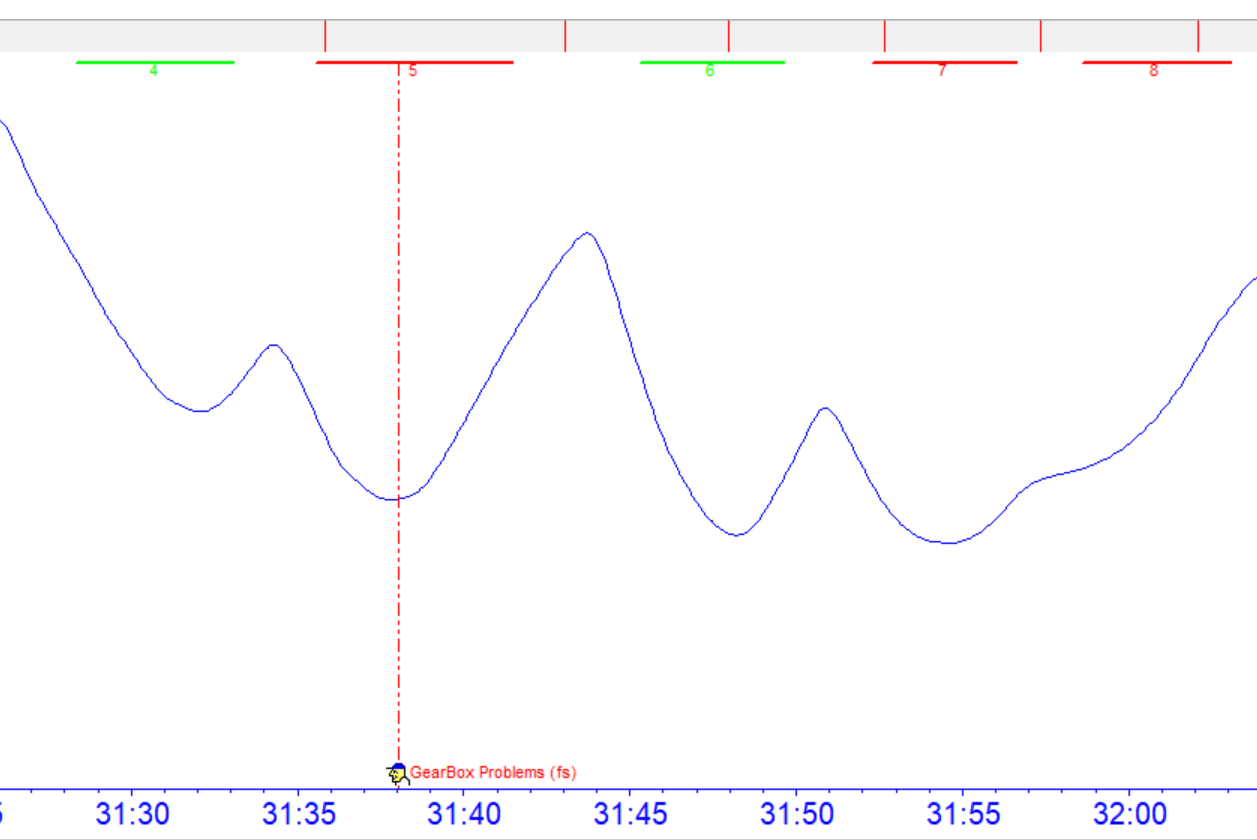

User defined marker in MES
